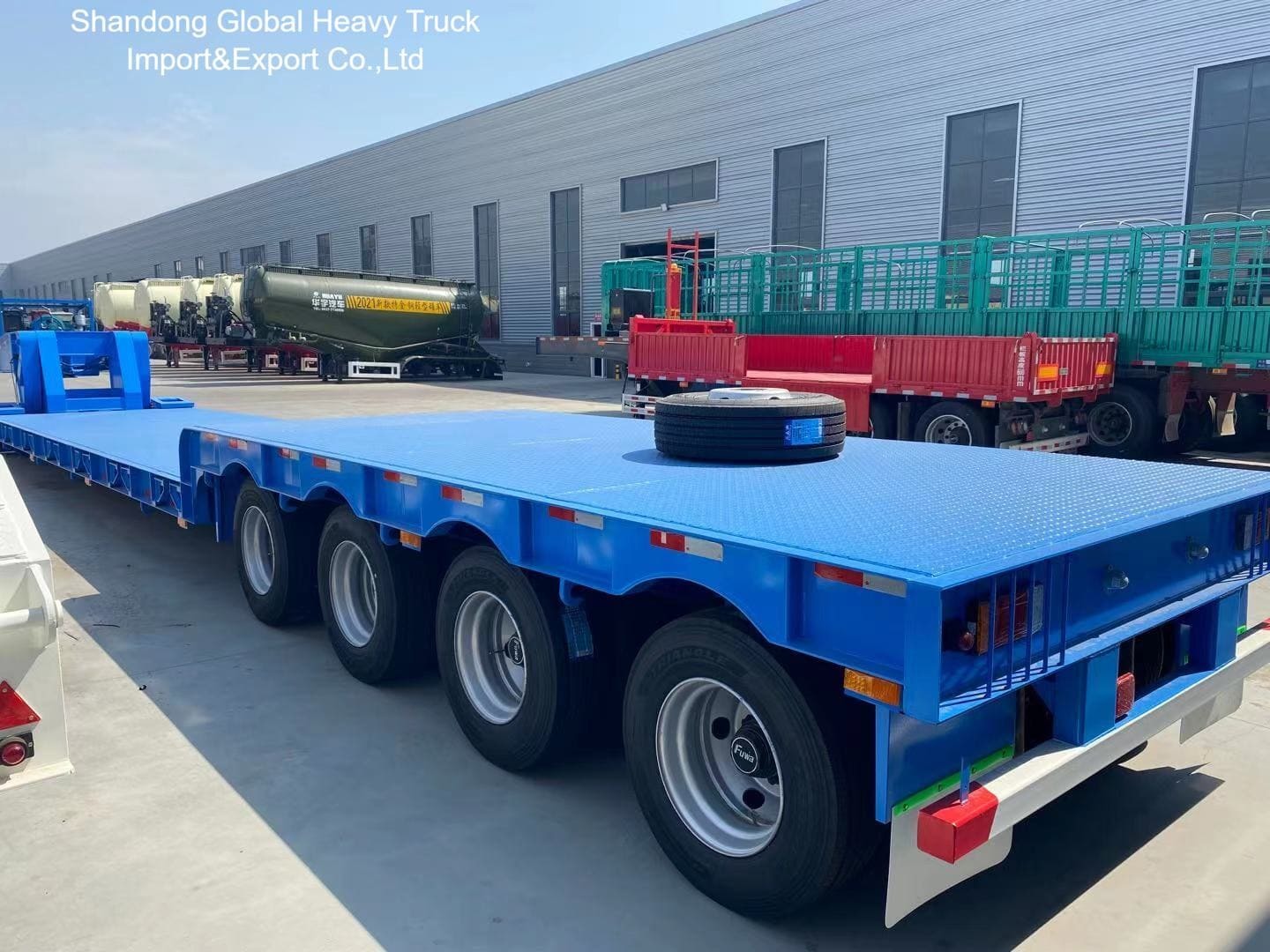

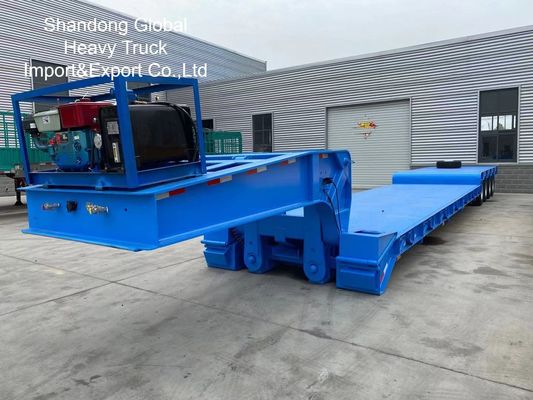

100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport

100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport

  • 100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport
  • 100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport
  • 100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport
  • 100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport
100 Ton Low Bed Semi Trailer with Reinforced High-Tensile Steel and Hydraulic Ramp System for Heavy Equipment Transport
Detalhes do produto:
Lugar de origem: CHINA
Marca: sinotruk
Certificação: iso/ccc
Número do modelo: Howo
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 unidade
Preço: Negociável
Detalhes da embalagem: Nu
Tempo de entrega: 30-45 dias de trabalho
Termos de pagamento: L/c, t/t
Habilidade da fonte: 300 unidades/unidades por mês
Contato
Descrição de produto detalhada
Tipo: Semi-reboque de cama baixa Dimensão geral: 13000mm*2550mm*1800mm
Certificação: ECE, Gcc, CE, ISO9001, DOT, CCC, ISO/Ts16949 Guiga: Ação única de 28 toneladas
Número do eixo: 3 Eixos por Necessidade Material: aço duro
Código HS: 8716100000
Destacar:

100 Ton Low Bed Semi Trailer

,

Reinforced High-Tensile Steel Low Bed Semi Trailer

,

Hydraulic Ramp System Low Bed Semi Trailer

Heavy Duty Used Excavator 2 3 4 Axle Gooseneck 100 Ton Lowboy Platform Loader Low Bed Semi Truck
4 Axle Low Bed Semi Trailer — Reliable Heavy Equipment Transport Solution from China
The 4 Axle Low Bed Semi Trailer is specially designed for transporting heavy machinery, construction equipment, and oversized cargo. With its reinforced high-tensile steel structure, wide platform, and excellent stability, this trailer guarantees safe and efficient performance even under the toughest working conditions in Africa's construction and mining industries. It is the ideal choice for transporting excavators, bulldozers, cranes, and other large machinery between project sites — ensuring reliability, long service life, and low maintenance cost.
Technical Specifications
Item Specification
Model 4 Axle Low Bed Semi Trailer
Overall Dimensions (L × W × H) 13,000-17,000 × 3,000 × 1,650 mm
Rated Load Capacity 80-120 Tons
Axles 4 × 13T / 16T FUWA or BPW Brand
Tires 12R22.5 / 315/80R22.5 (16 pcs + 1 spare)
Suspension Mechanical Leaf Spring or Air Suspension (Optional)
Main Beam Q345B High-Strength Steel, Upper 20mm / Lower 22mm / Middle 500mm
Platform Height 850-1250 mm
Ramps Hydraulic or Spring Type
King Pin 2" or 3.5" Bolted Type
Landing Gear 28T JOST or Chinese Brand
Brake System WABCO Air Brake System
Electrical System 24V LED Lighting
Painting Sandblasting + Anti-Rust Primer + Customized Color
Material High-Tensile Carbon Steel
Certification ISO, CCC, SGS
Application Transporting Excavators, Bulldozers, Loaders, Cranes, Mining Equipment
Key Features
  • Strong 4-axle design for increased load capacity and improved stability.
  • Hydraulic ramp system for easy loading and unloading of heavy machinery.
  • High-strength Q345B steel structure ensures maximum durability under tough conditions.
  • Air or mechanical suspension options to suit different road surfaces.
  • Anti-corrosion paint system for longer service life in coastal and humid areas.
  • Customizable platform dimensions for different machinery sizes.
Customer Feedback
"We use this 4-axle low bed trailer to transport excavators between construction sites. Very stable and reliable, even on rough roads."
— Mr. Carlos, Maputo, Mozambique
"The hydraulic ramps save a lot of time when loading heavy machines. Build quality is excellent."
— Mr. Kelvin, Dar es Salaam, Tanzania
"Perfect for moving cranes and mining machines. The trailer feels strong and durable."
— Mr. Musa, Lagos, Nigeria
FAQ
Q1: What's the standard loading capacity of this 4-axle low bed trailer?
A1: Standard loading capacity ranges from 80 to 120 tons, depending on configuration and axle choice.
Q2: Can the trailer dimensions be customized?
A2: Yes, length, width, and ramp type can be customized to fit your transport requirements.
Q3: What kind of suspension do you recommend for African roads?
A3: Mechanical spring suspension is most durable for rough terrain, while air suspension offers smoother rides for paved highways.
Q4: How long is the production and shipping time to Africa?
A4: Usually 25-30 days for production; shipping time depends on the destination port.
Q5: Do you provide spare parts and after-sales support?
A5: Yes, we offer spare parts and technical support through local partners or direct shipment from China.
Q6: Is the color and logo customizable?
A6: Yes, both can be customized according to your company branding.
