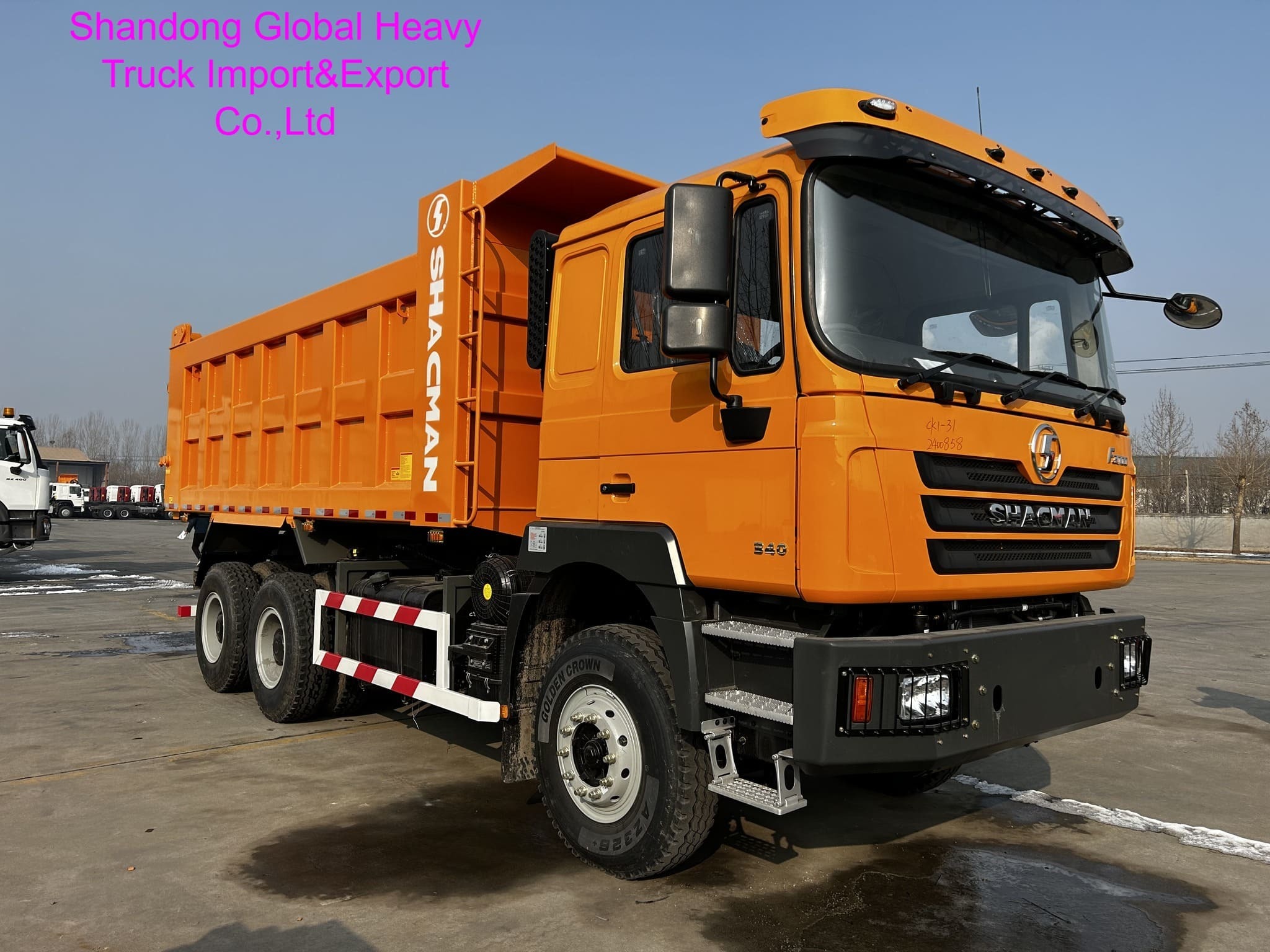

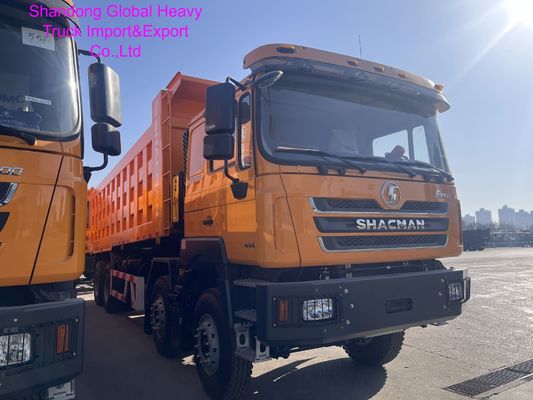

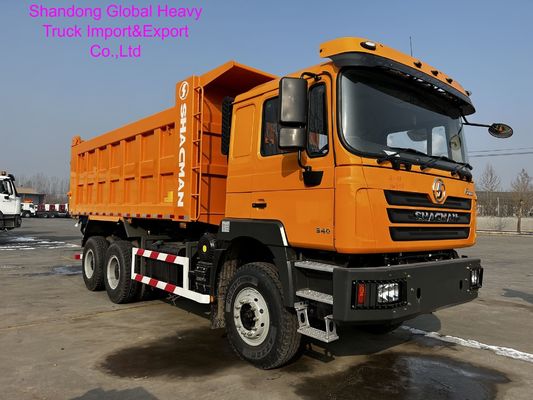

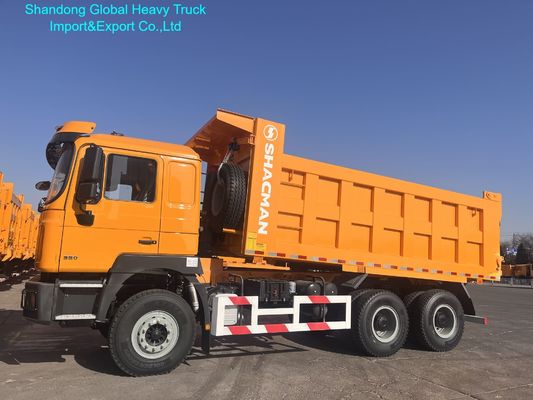

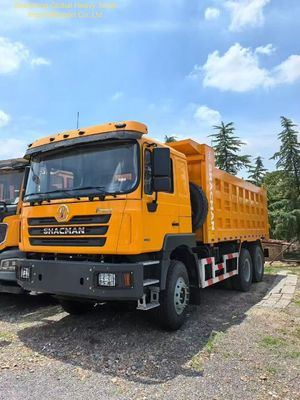

Shacman F3000 380HP 6X4 10 Wheels Heavy Duty Dump Truck for Mining and Construction

The SHACMAN F3000 Dump Truck is engineered for demanding operations in construction, mining, and long-haul transport. Featuring a robust 400HP powertrain, reinforced structure, and adaptable loading capacity, this truck delivers exceptional performance for heavy-duty applications.

• Brand: SHACMAN
• Model: F3000 Dump Truck
• Drive Type: 6×4
• Engine: Weichai WP10 / 400 HP, Euro II/III standard
• Transmission: Fast 10- or 12-speed manual gearbox
• Clutch: Single dry plate, 430 mm
• Axle: 7.5T front, 16T rear, hub reduction optional
• Suspension: Reinforced multi-leaf spring system
• Frame: Double-layer high-strength steel, 8+8+8 mm
• Steering: Hydraulic power steering (ZF technology)
• Brakes: Dual circuit air brake system, ABS optional
• Fuel Tank: 400 L

• Body Type: U-shape or square box
• Box Dimension: 5600-5800 × 2300 × 1500 mm (customizable)
• Material: High-strength steel Q345 / NM450
• Thickness: 8-10 mm bottom, 6-8 mm sides
• Payload: 25-30 tons
• Hydraulic System: HYVA lifting cylinder, fast unloading

• Overall Dimension: 8614 × 2490 × 3450 mm
• Wheelbase: 3775 + 1400 mm
• Curb Weight: 12,500-13,000 kg
• GVW: 25,000-30,000 kg
• Top Speed: 80-90 km/h

• Robust chassis designed for both off-road and urban conditions
• Exceptional payload capacity for bulk material transport
• Reliable engine with superior climbing ability
• Ideal for road construction, quarrying, and logistics operations
• Global spare parts availability and comprehensive after-sales support
